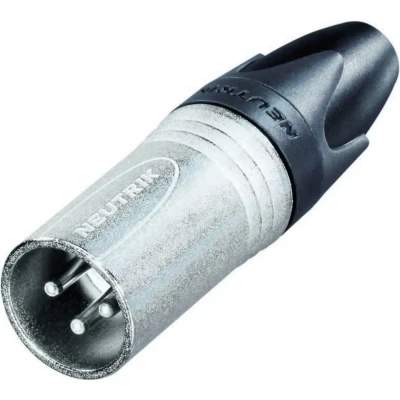

Stik XLR Han Metal

Kompakt, kort design 7-folds lamineret kontakt Spolehovedtrækaflastning Nem montering, ingen løse dele Integreret antiviklingsbeskyttelse til kabler ø 3.5...8 mm The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. TECHNICAL DATA Product • Connector: Type XLR • Gender: male Electrical • Number of contacts: 3 • Contact resistance: ≤ 3 m • Insulation resistance initial: 2 G • after damp heat test: 1 G • Dielectric strength: 1500 V dc • Rated current: 16 A • AWG: 2.5 mm²/14 AWG • Capacitance between contacts: ≤ 4 pF Mechanical • Lifetime: 1000 cycles • Insertion / withdrawal force: ≤ 20 N • Cable O.D. range: 3.5 mm - 8.0 mm Materials • Shell: ZnAl4Cu1, gal Ni over Cu plating • Insert: PA 6.6 30% GR (glass reinforced) • Contacts: CuZn39Pb3 • Contact surface: gal 2 um Ag • Strain-relief clamp: POM • Antikink bushing: PUR Environmental • Flammability: UL 94 HB • Standard compliance: IEC 61076-2-103 • Protection class: IP 40 • Solderability: Complies with IEC 68-2-20 • Temperature range: -30 °C to +80 °C Mængde: 1 St. Stikudformning - side A: Lige Tilslutnings Type: XLR Diameter: 8.0 mm Kontakternes stiktype: Han Materiale: Metal Farve: Sølv Nominel netstrøm: 16 A Pakning: Plasticpose Belægning: Nikkel

3-polig XLR-hane Nickelhus och silverkontakter
