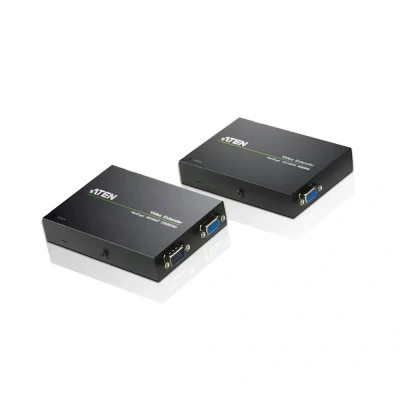

VGA Cat5 Extender 150 m

This video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5 cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location. • Uses Cat 5e cable to connect the local and remote units. • Supports a local and a remote display. • Adjustable gain control – manually adjust signal strength to compensate for distance • Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m) • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors • Supports wide screen formats • Supports hot-plugging • Built-in 8KV/15KV ESD protection • Supports DDC for the local monitor • Easy installation • Rack Mountable Type: AV sender & modtager Maks. opløsning: 1280 x 1024 pixel Typer kabel, der understøttes: Cat5e Understøttede grafikopløsninger: 1280 x 1024 (SXGA) Kabellængde: 150 m Farve på produkt: Sort RJ-45 indgangs-porte: 1 VGA (D-Sub) indgangs-porte: 1 VGA (D-Sub) udgangs-porte: 1 DC-jack-stik, indgående: Ja Driftsspænding: 5,3 V Strømkrav: 1.2W Driftstemperatur (T-T): 0 - 50 °C Lagringstemperatur (T-T): -20 - 60 °C Relativ luftfugtighed (H-H): 0 - 80% Mål (BxHxD): 86 x 119 x 23 mm Vægt: 250 g

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.
